    TR Fender (TR)
    TR Fender (TR)

    Price: Contact

      Product code: CM- TRF
    • Manufacturer : HWASEUNG EXWILL - Korea
    • Guarantee : 2 Year
    • Status: Manufacture with your request

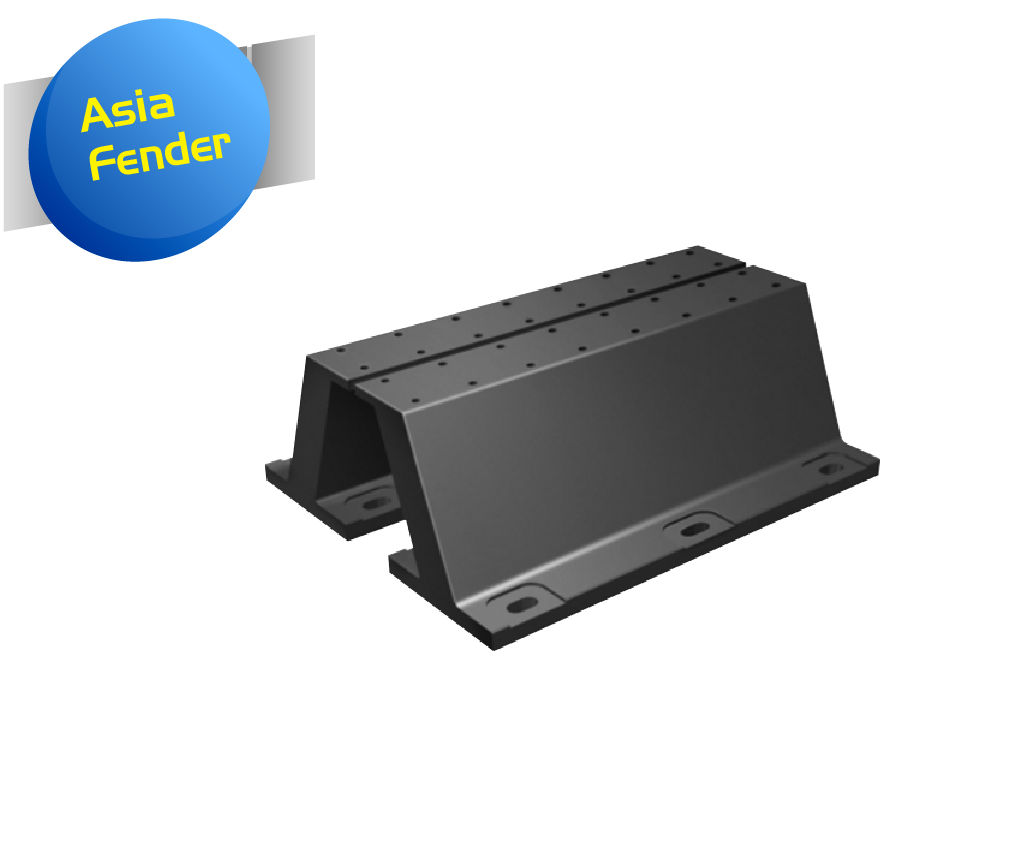

    • TR-Type Fender

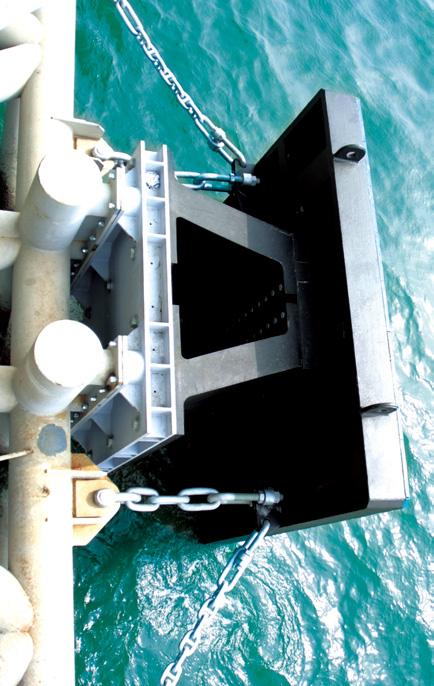

    TR fender consists of two independent legs of solid rubber bolted to a wide steel-framed rubbing board protected with square pads of high quality plastic material.

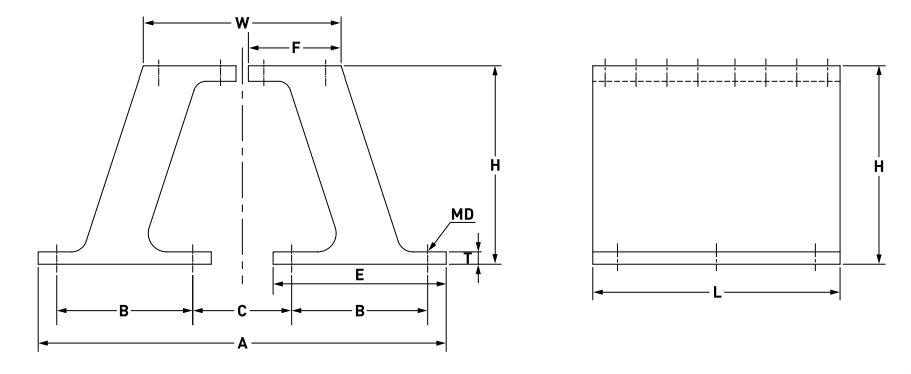

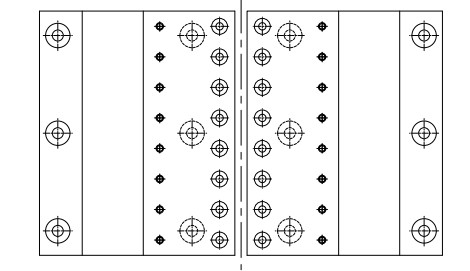

    • Dimension (Unit:mm)
    Dimension MD A B C E F T W L
    Height
    600H M48 (2) 1435 450 375 592.5 180 50 965

    1000

    ~

    3000

    800H M64 (2 1/2) 1850 585 480 765 240 60 800
    1000H M64 (2 1/2) 2180 685 610 890 300 65 1000
    1150H M64 (2 1/2) 2500 800 650 1005 345 65 1150
    1300H M76 (3) 2740 880 750 1115 395 65 1300
    1450H M76 (3) 3100 1000 800 1300 675 100 1450
    1600H M76 (3) 3300 1100 800 1400 750 100 1600
    1800H M76 (3) 3670 1200 970 1500 830 110 1800
    2000H M76 (3) 4050 1300 1150 1600 880 120 2000
    2250H M76 (3) 4400 1400 1300 1700 945 130 2250
    2500H M76 (3) 4860 1500 1560 1800 1000 140 2500

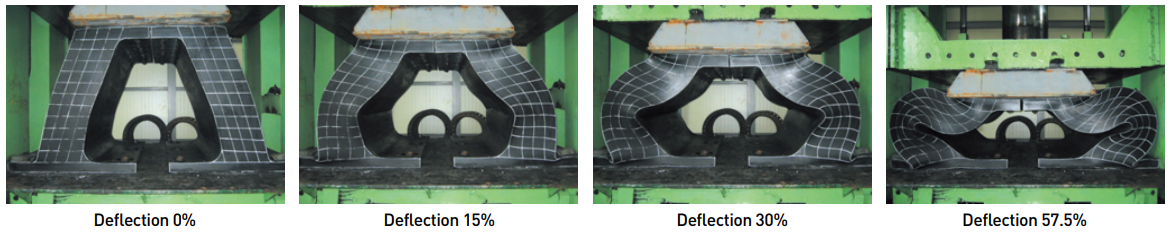

    • Compression Test

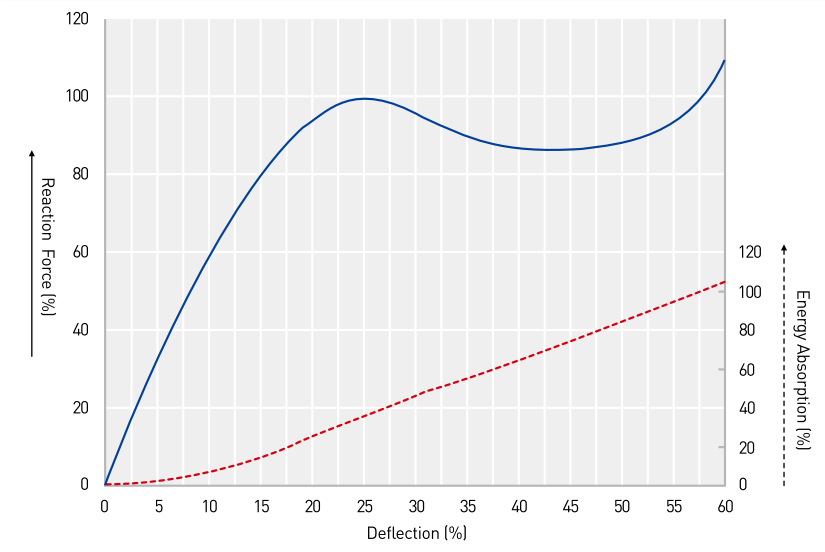

    • Performance Curve





    • Performance of Intermediate Deflection

    Deflection (%) R • F(%) E • A(%)
    0 0 0
    5 33 2
    10 58 7
    15 80 14
    20 94 24
    25 100 35
    30 96 45
    35 90 56
    40 87 65
    45 86 75
    50 89 85
    55 94 95
    57.5 100 100
    60 110 106

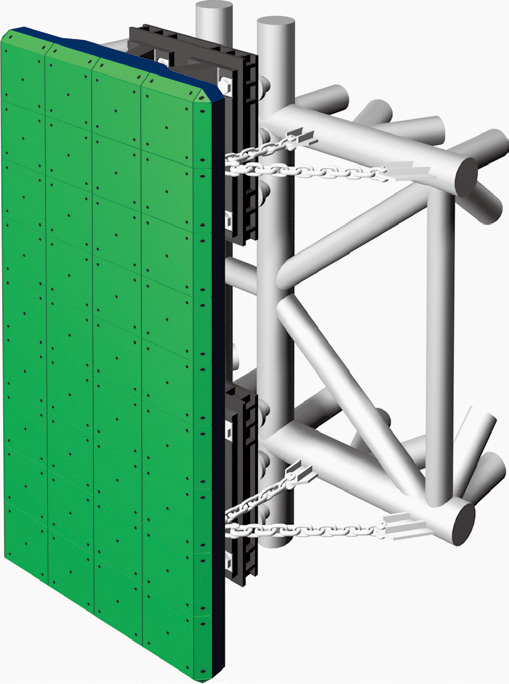

    • 3D Model
    • Performance Table, Pianc Factor, Angular Berthing and Angular Performance Factor  View asiafender catalogue to know more detail infomation
